مركز الميكنة متعددة الوظائف PreMill V 610 B

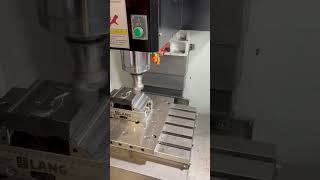

This 3-axis PreMill V 610 B was manufactured in 2019. It features an X-axis travel of 610 mm, Y-axis travel of 350 mm, and Z-axis travel of 460 mm. The machine has a robust table size of 710 x 350 mm and a maximum workpiece weight of 350 kg. If you are looking to get high-quality machining capabilities, consider the PreMill V 610 B vertical machining centre we have for sale. Contact us for further details.
Location: DE
brand: PreMill
Control Brand: SIEMENS
Control Model: 828 D SL
Spindle Power: 7 kW
Taper Size: SK 40
Through-spindle Coolant: yes
Distance Spindle Center to Table Surface: 100 - 560 mm
Max. Workpiece Weight: 350 kg
Rapid Traverse Speed (X/Y/Z): 12 m/min
Feed Speed: 10 m/min
Positioning Accuracy: +/- 0.008 mm
Repeatability: +/- 0.005 mm
Tool Changer Type: Carousel
Tool Storage Capacity: 16 slots
Spindle Motor Power (100% ED): 7 kW
Feed Motor Power (X/Y/Z): 2.3 kW
Power Supply: 12 kVA
Compressed Air Supply: 6 bar
Coolant Tank Capacity: 100 L
additional features available: ShopMill, 3D Simulation, Auto Power Off, Rigid Tapping, Flat Guideways in X/Y/Z, Chip Conveyor (Screw type) with Chip Cart, Spindle Ring Flushing, Prepared for CTS (IKZ), Prepared for 4th Axis, Central Oil Lubrication, LED Signal Lamp & Workspace Light, Vice
