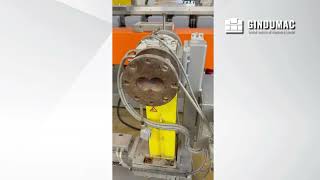

ماكينة تشكيل البلاستيك Leistritz ZSE60MAXX-48D

This LEISTRITZ ZSE60MAXX-48D was manufactured in 2012. A co-rotating twin-screw extruder, it's designed for high-performance compounding of advanced polymer materials, including biodegradable polymers. Adaptable to various extrusion processes, it's ideal for bioplastics, masterbatch production, or specialty compounding. Contact us for more information about this machine.
Location: IT
Additional information
The machine is a co-rotating twin-screw extruder designed for high-performance compounding and processing of advanced polymer materials. It is specifically configured for the production of biodegradable polymers but can be adapted to various extrusion processes. The machine is new and has never been tested
The machine represents a professional-grade extrusion solution for companies involved in bioplastics
masterbatch production
or specialty compounding
Machine Data
Screw center distance
50.0 mm
Feed screw diameter
55.0 – 61.9 mm
Screw diameter
61.9 mm
Diameter of kneading discs and kneading blocks
61.7 mm
Screw material
VSA2
Barrel diameter
62.3 H8
Barrel material
VSA2
Screw length
48D
Mechanical screw torque
2 × 1375 Nm
Drive type
Three-phase motor
Drive power
121 kW
Max. motor speed
1620 rpm
Gear ratio
i = 4.05
Max. screw speed
400 rpm
Power transmission
Safety coupling (shutdown torque 868 Nm)
Number of temperature-control zones
11
Heating power
100.80 kW
Number of cooling zones
11
Cooling type
ZIK (intensive barrel cooling)
Feed zone cooling
Water
Max. melt pressure
220 bar
Max. melt temperature
350 °C
Injection height
1050 mm
Sound power level
Approx. weight
Specified on machine frame
